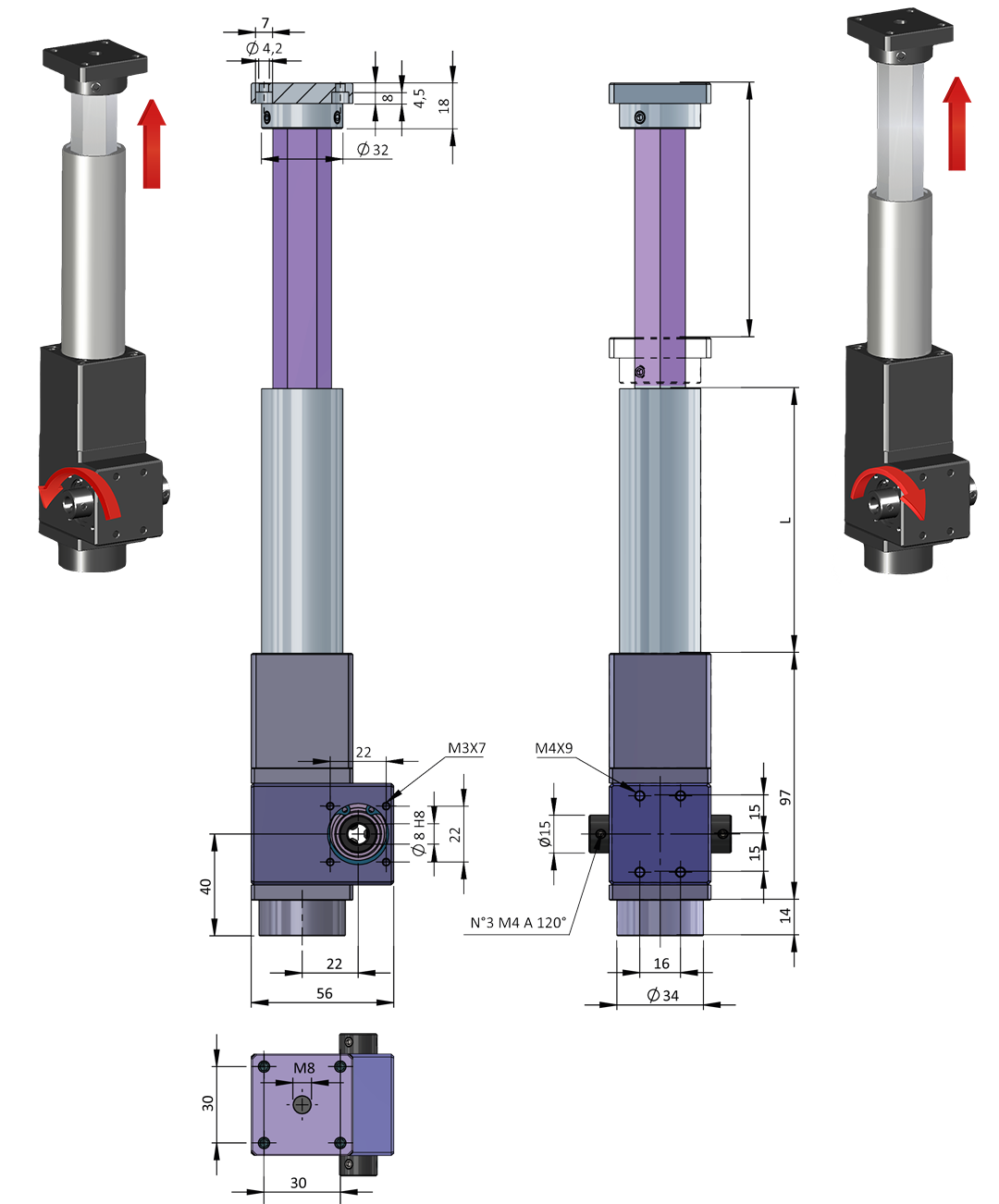

MAR40G
«Guided» mechanical lifting jacks
• Modular guided systems ready for installation
• Precise and synchronized movement
• Self-supporting lifting and movement of the load
• Single lifting jack or combination of multiple units
• Combination with joints, shafts, gearboxes
• Semi-automatic systems with digital or programmable inidcators
• Automatic systems with servomotors
• Strokes up to 300 mm
• Maintenance-free: lubricated with long-life Klüber grease
• Turn-key systems
Available on request:

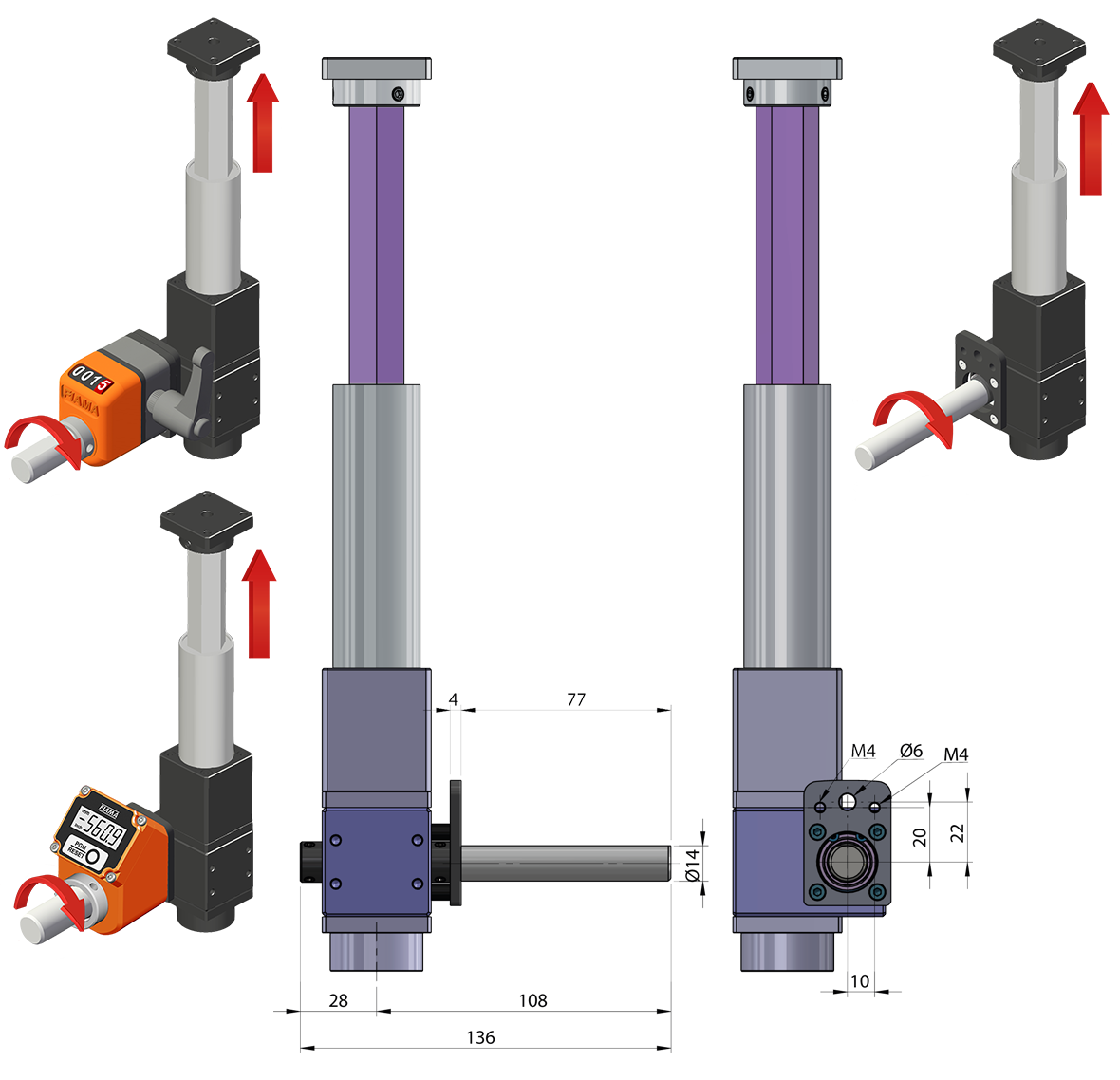

• Supplied complete with fixing flange and extension shaft for display with „OP3“ digital indicator or „EP3“ programmable indicator
(see dimensions MAR40G FL-OP3)
Photogallery
| APPLICATION EXAMPLES |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
MAR40G |
 |
|
MAR40G FL-OP3/EP3 |
 |
| INSTALLATION |
| Installation must not create radial/lateral loads, which are the main cause of failure, on the threaded bar. The plane to which the screw jack is fixed and the threaded bar must be orthogonal and the load and the bar must be coaxial avoiding eccentricity. When applying multiple jacks (connected also by transmissions) the terminals must be perfectly aligned so that the load is uniformly distributed; in this case it is recommendable to use couplings to compensate misalignments. |
| SIZING VERIFICATION |
| • Load (N) = the force which is applied to the threaded bar of the screw jack (10 N ≅ 1 kg) |
| • Linear speed (mm/min) = the desired linear speed of the load; it is recommendable to limit the input rotary speed to max 1500 rpm |
| • Stroke (mm) = it is the linear distance that the load must be moved, generally it coincides with the total length of the threaded bar |
| • Protective cover (optional) = necessary to protect the bar in case of contamination, dust, foreign objects and/or oscillating installation and movements |
| • Torque (Nm) = torque required for the handling of the load |
| RADIAL AND AXIAL LOADS | |
| The loads acting on the shafts can be of two types: radial ‘FR’ (radial force) and axial ‘FA’ (axial force), referred to the axis of the shaft; when ordering specify whether the axial load is pull or push type. FR - force / radial load acting in perpendicular direction to the shaft / axis FA - force / axial load acting of the shaft / axis |
|
| PUSH | PULL |
 |
 |
Control handwheel with folding handle, thermoplastic material, steel bush.
➜ for more complete information, see V.R
Crank handle with folding handle in thermoplastic material, steel bush.
➜ for more complete information, see V.M
Flanged supports with extension shaft for coupling with position indicators.
➜ for more complete information, see Flanged supports
The «GC» and «GCC» cardan joints used for the transmission of torque and movement of non-aligned elements.
Main features: universal application, high reliability, maintenance free, extremely precise and ease-of-use.
• Case entirely machined from solid, in stainless steel AISI303.
• Suitable for intermittent (UI) and continuous movements (UC).
• Maximum working angle 45 °.
➜ for more complete information, see GC and GCC
• The telescopic shafts are ideal to connect two elements with a constant or variable center to center distance.
• Suitable for adjustments and for continuous use.
• Torque from 5 Nm to 10 Nm.
➜ for more complete information, see ATE
• The telescopic shafts are ideal to connect two elements with a constant or variable center to center distance.
• Suitable for adjustments and for continuous use.
• Torque from 25 Nm to 50 Nm.
➜ for more complete information, see ATS
The AR series of rigid shafts is used to directly connect parts which are perfectly aligned without any offset.
The main advantages are universal applicability and high reliability.
• Suitable for use in manual and motorized motion transfer.
• Simple and quick installation without additional supports.
➜ for more complete information, see AR
• 4 digits counter (standard red digit indicates decimals; on request 2 red digits for hundredths or 4 black digits for mm). Reading until 9999.Digit height 5 mm
• Standard shaft bore: ø14H7; other bores, smaller than 14 with reducing bush.
➜ for more complete information, see OP3
Angular gearbox 66/4 with flange MØ14x68 FL-OP3/EP3, designed for connection with the position indicator. It ensures precise adjustments and accurate monitoring of the position, enhancing stability and reading accuracy. The flange, made of black anodized aluminum, perfectly matches the gearbox case, both featuring the same elegant and durable finish.
➜ for more complete information, see 66/4
The EP3 electronic indicator allows monitoring of adjustments to eliminate errors and a precise reading of linear or angular displacements.
• 100% interchangeable with mechinal indicator OP3.
• Powered by a long-life battery, easy replacement from the front.
• Hollow shaft made of stainless steel; shock, vibration and dirt resistant plastic case.
➜ for more complete information, see EP3
● Drive and position control integrated into a single device.
● Ultracompact design for simple installation; ø14mm output shaft with 5mm flat key.
● Communication protocols: Profinet, Ethernet/IP, Powerlink, EtherCAT.
➜ for more complete information, see SERVO.ALL
The Servo-OP is an electric rotary actuator which, in combination with the optional OP3 indicator, allows position control with two buttons.
• Compact case made of anodized aluminum
• Hollow shaft output
➜ for more complete information, see SERVO.OP
Photogallery
Richiedi l'accesso
|
LEGEND FOR PERFORMANCE TABLES |
||
|
Tab. 1 |
= |
moving loads as to input torque |
|
Tab. 2 |
= |
moving loads as to trapeziodal screw (with use of guides) |
|
Tab. 3 |
= |
screw travel speed according to revolution nr. |
|
i |
= |
reduction ratio [/] |
|
T |
= |
torque [Nm] |
|
C |
= |
moving load [kg] |
|
s |
= |
stroke [mm] |
|
ω |
= |
rotation speed [rpm] |
|
v |
= |
travel speed [mm/s] |
