Handwheels for gravity indicators

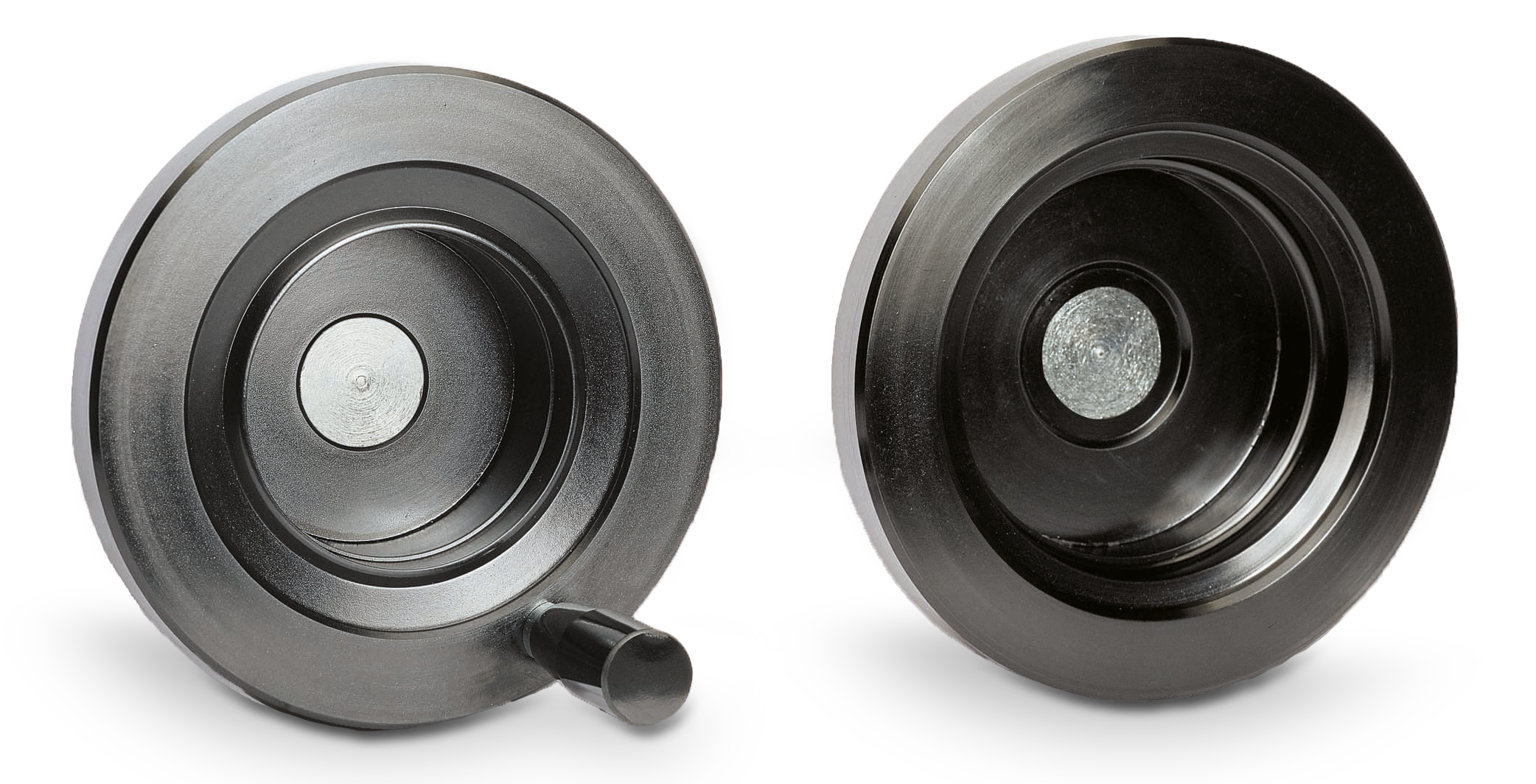

The handwheels P140 - P160 - P180 - P170 - P200 are used with analogue and analogue-digital indicators with gravity motion.
• The instrument, fitted inside, is blocked by a fixing screw.
• Available with or without handles
• Reinforced hardplastic, black colour, solvents-, oils-, greases-proof, etc.
• Steel or aluminium hub. On request bored holes tolerance H8, key splines, transversal bores, etc.
• The lock pin for the fix reaction is in zinc-plated steel ø4 mm or threaded M4 (on request).
• Models P140 - P160 - P180, used with indicators I80, IN80 (➜ see sec. "I80-IN80" in the drop-down menu on the left).
• Models P170 - P200, used with indicators I100, I100P (➜ see sec. "I100, I100P" in the drop-down menu on the left).
Photogallery
| P- |
 |
| Type |
Dimensions
|
||||
|
E
|
H
|
D
|
C
|
H1
|
|
| P140 |
140
|
76
|
35
|
82
|
45-61
|
| P160 |
160
|
76
|
35
|
82
|
61-72
|
| P180 |
180
|
78
|
35
|
82
|
61-72
|
| P170 |
170
|
82
|
35
|
106
|
72-94
|
| P200 |
200
|
82
|
35
|
106
|
72-94
|
The handles for the P series of handwheels are made in reinforced technopolymer, black colour, solvent-,oil-, grease-proof, etc.
| MG - Revolving handle | |
 |
 |
| Type |
Dimensions
|
|||
|
A
|
B
|
C
|
D
|
|
| MG40 |
17
|
45
|
8
|
M8
|
| MG55 |
23
|
61
|
10
|
M8
|
| MG65 |
25
|
72
|
13
|
M10
|
| MG85 |
28
|
94
|
13
|
M10
|
| MGR - Overturnable and revolving handle | |
 |
 |
|
COMBINATIONS HANDLES - HANDWHEELS |
|||||
| HANDWHEELS → | P125 | P140 | P160 | P180 | P200 |
| HANDLES ↓ | |||||
| MG40 | • | ||||
| MG55 | • | ||||
| MG65 | • | • | • | ||
| MG85 | • | ||||
| MGR85 | • | • | • | ||
The I80-IN80 indicators have to be fitted in motion handwheels to measure adjustments (angles, shiftings, speed, etc.) on a control dial, with a regulation screw on the cover front. They are assembled by pressing them directly into the handwheel seat.
• Technopolymer or metal case. Transparent and shock-proof polycarbonate cover. Protection IP64. Max. temperature: 80°C.
➜ for more complete information, see sec. "Indicators with gravity and..." in the drop-down menu on the left.
|
COMBINATIONS EXAMPLES |
|
|
P180- IN80 |
P200 - I100P |
|
|
 |
|
COMBINATIONS HANDWHEEL-INDICATOR |
|||||
| HANDWHEELS → | P140 | P160 | P170 | P180 | P200 |
| INDICATORS ↓ | |||||
| I80 | • | • | • | ||
| IN80 | • | • | • | ||
| I100 | • | • | |||
| I100P | • | • | |||
